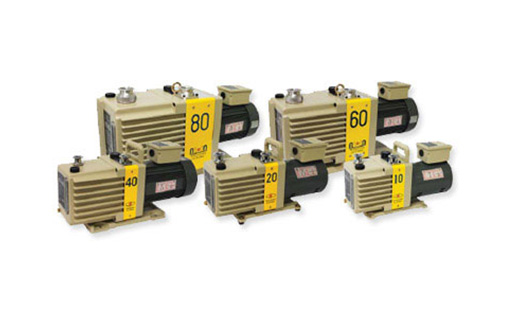

W2V Series
W2V Series have a compact design. Easy to carry and set up.
Brief Specification of W2V Series
| Model | Pumping Speed(60Hz) | Ultimate Pressure | Power | Weight |
|---|---|---|---|---|
| SV-140 | 140 L/min | 5 X 10-4torr | 400 W | 16 kg |
| W2V10 | 100 L/min | 5 X 10-4torr | 400 W | 22 kg |
| W2V20 | 200 L/min | 5 X 10-4torr | 400 W | 23.5 kg |
| W2V40 | 400 L/min | 5 X 10-4torr | 750 W | 29 kg |
| W2V60 | 600 L/min | 5 X 10-4torr | 1.5 W | 53 kg |
| W2V80 | 800 L/min | 5 X 10-4torr | 1.5 W | 67 kg |
| W2V100 | 1000 L/min | 5 X 10-4torr | 1.5 W | 80 kg |
| W2V150 | 1500 L/min | 5 X 10-4torr | 4 W | 110 kg |
| W2V180 | 1800 L/min | 5 X 10-4torr | 4 W | 120 kg |

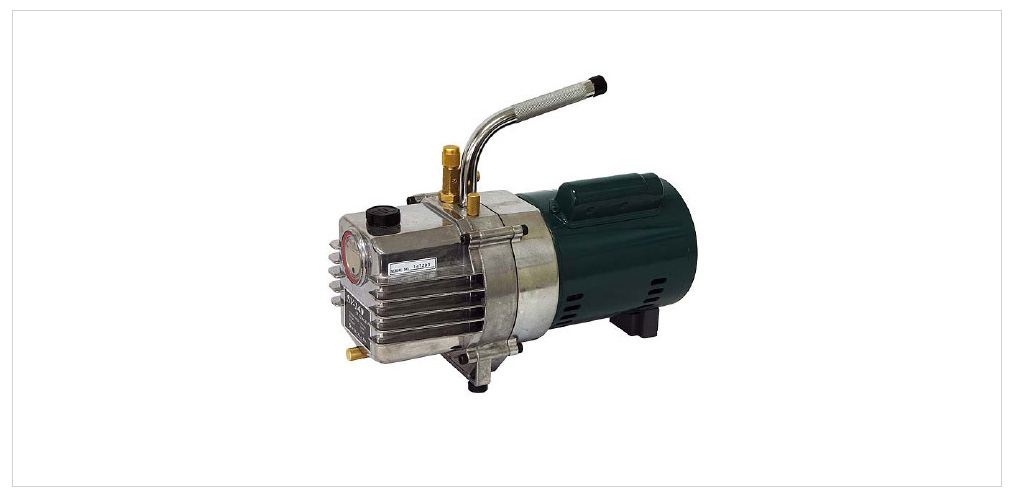

Specfifcation of SV-140
SV-140
| Pumping Speed | 140 ℓ/min | |
|---|---|---|
| Ultimate Pressure | Gas Ballast Closed | 5X10-3 torr(6.7x10-1 Pa) |
| Gas Ballast Open | 5X10-2 torr(6.7 Pa) | |
| Power Input | Standard | 220VAC 1Ф 50/60Hz |
| Option | 110VAC 1Ф 50/60Hz | |
| Customer's Request(Voltage, Frequency) | ||
| Full Load Power | 0.4kw(0.5 HP) | |
| Motor Speed | 1700rpm | |
| Inlet | Standard | 1/4" and 3/8" T-type |
| OptionⅠ | 1/4" and 3/8" Cross Type | |
| OptionⅡ | 3/8" Stand Type | |
| Oil Capacity | 600cc (0.6ℓ) | |
| Weight | 16kg | |
| Ambient Operation Temp. Range | 7~40℃ | |
| Overall Dimension(mm) | 160(W)X397(L)X297(H) | |

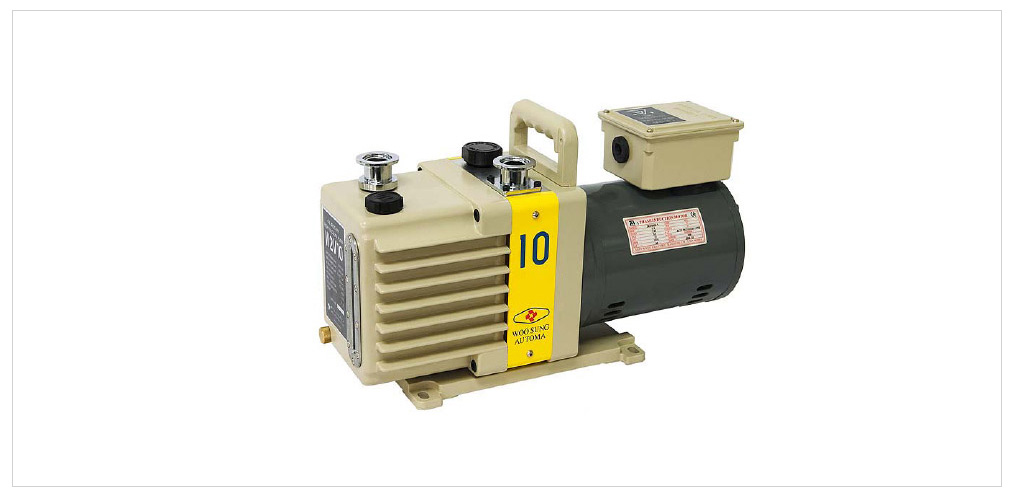

Specfifcation of W2V10
W2V10
| Pumping Speed | 100 ℓ/min | |
|---|---|---|
| Ultimate Pressure | Gas Ballast Closed | 5X10-4 torr(6.7x10-2 Pa) |
| Gas Ballast Open | 5X10-2 torr(6.7 Pa) | |
| Power Input | Standard | 220VAC 1Ф 50/60Hz |
| Option | 220VAC/380VAC 3Ф 50/60Hz | |
| Customer's Request(Voltage, Frequency and phase) | ||
| Full Load Power | 0.4kw(0.5 HP) | |
| Motor Speed | 1700rpm | |
| Inlet and Outlet | Standard | NW25 |
| OptionⅠ | Hose Nipple(Ф12 OD, Ф16 OD or Ф26 OD) | |
| OptionⅡ | Screw Nipple(3/8" Female) | |
| Oil Capacity | 500cc (0.5ℓ) | |
| Weight | 22kg | |
| Ambient Operation Temp. Range | 7~40℃ | |
| Overall Dimension(mm) | 150(W)X398(L)X251(H) | |

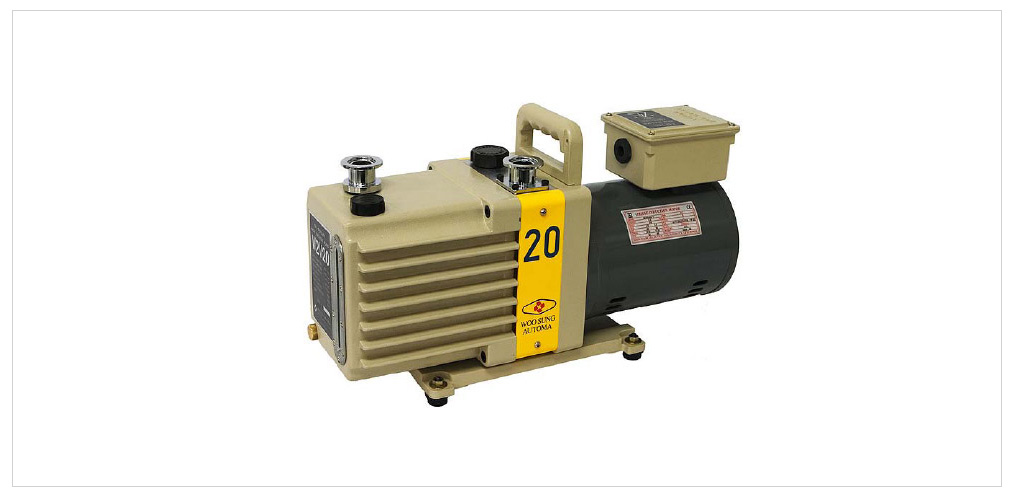

Specfifcation of W2V20
W2V20
| Pumping Speed | 200 ℓ/min | |
|---|---|---|
| Ultimate Pressure | Gas Ballast Closed | 5X10-4 torr(6.7x10-2 Pa) |
| Gas Ballast Open | 5X10-2 torr(6.7 Pa) | |
| Power Input | Standard | 220VAC 1Ф 50/60Hz |
| Option | 220VAC/380VAC 3Ф 50/60Hz | |
| Customer's Request(Voltage, Frequency and phase) | ||
| Full Load Power | 0.4kw(0.5 HP) | |
| Motor Speed | 1700rpm | |
| Inlet and Outlet | Standard | NW25 |
| OptionⅠ | Hose Nipple(Ф12 OD, Ф16 OD, or Ф26 OD) | |
| OptionⅡ | Screw Nipple(3/8" Female) | |
| Oil Capacity | 600cc (0.6ℓ) | |
| Weight | 23.5kg | |
| Ambient Operation Temp. Range | 7~40℃ | |
| Overall Dimension(mm) | 150(W)X434(L)X251(H) | |

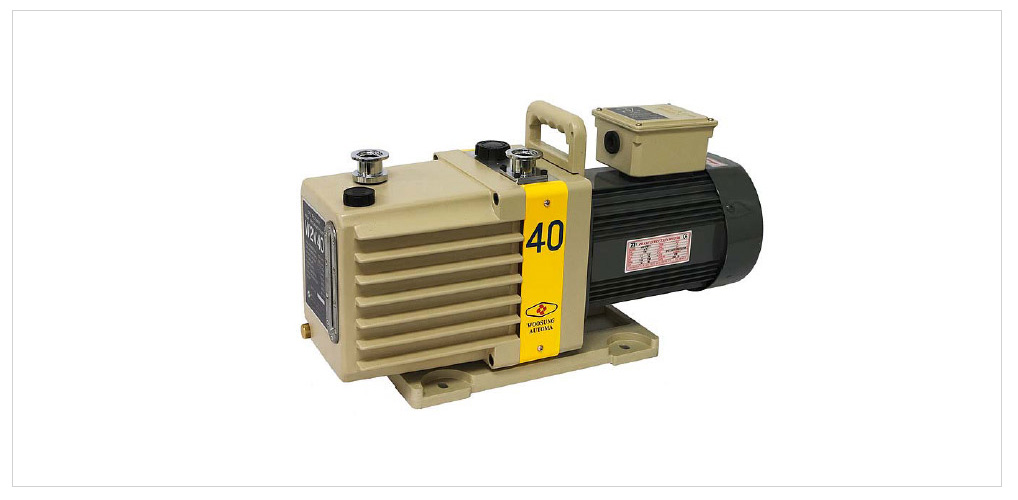

Specfifcation of W2V40
W2V40
| Pumping Speed | 400 ℓ/min | |
|---|---|---|
| Ultimate Pressure | Gas Ballast Closed | 5X10-4 torr(6.7x10-2 Pa) |
| Gas Ballast Open | 5X10-2 torr(6.7 Pa) | |
| Power Input | Standard | 220VAC 1Ф 50/60Hz |
| Option | 220VAC/380VAC 3Ф 50/60Hz | |
| Customer's Request(Voltage, Frequency and phase) | ||
| Full Load Power | 0.75kw(1 HP) | |
| Motor Speed | 1700rpm | |
| Inlet and Outlet | Standard | NW25 |
| OptionⅠ | Hose Nipple(Ф12 OD, Ф16 OD, or Ф26 OD) | |
| OptionⅡ | Screw Nipple(3/8" Female) | |
| Oil Capacity | 1500cc (1.5ℓ) | |
| Weight | 29kg | |
| Ambient Operation Temp. Range | 7~40℃ | |
| Overall Dimension(mm) | 170(W)X490(L)X293(H) | |

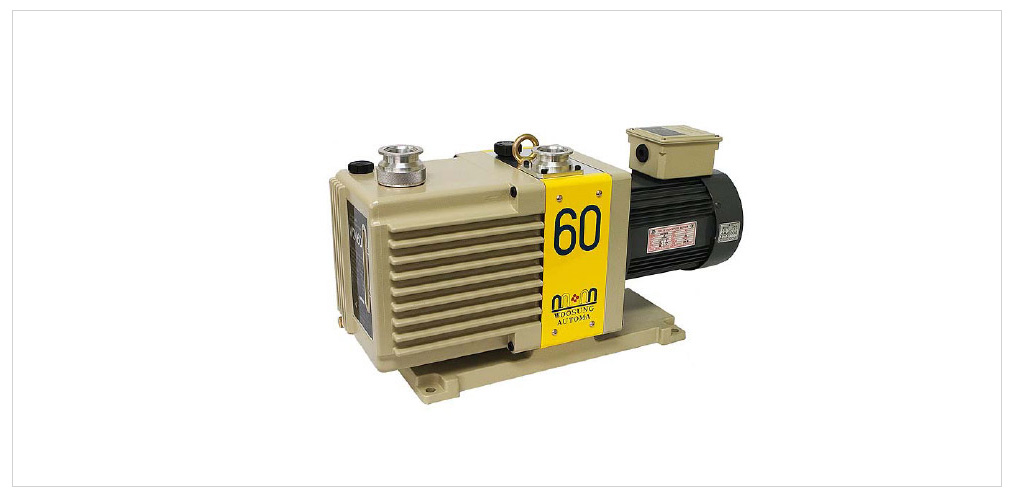

Specfifcation of W2V60
W2V60
| Pumping Speed | 600 ℓ/min | |
|---|---|---|
| Ultimate Pressure | Gas Ballast Closed | 5X10-4 torr(6.7x10-2 Pa) |
| Gas Ballast Open | 5X10-2 torr(6.7 Pa) | |
| Power Input | Standard | 220VAC/380VAC 3Ф 50/60Hz |
| Option | 220VAC/380VAC 3Ф 50/60Hz | |
| Full Load Power | 1.5kw(2 HP) | |
| Motor Speed | 1700rpm | |
| Inlet and Outlet | Standard | NW40 |
| OptionⅠ | NW25 or Hose (Ф36 OD) | |
| OptionⅡ | Hose Nipple(Ф12 OD, Ф16 OD, or Ф26 OD) | |
| OptionⅢ | Screw Nipple(3/8" Female) | |
| Oil Capacity | 2300cc (2.3ℓ) | |
| Weight | 53kg | |
| Ambient Operation Temp. Range | 7~40℃ | |
| Overall Dimension(mm) | 206(W)X609(L)X313(H) | |

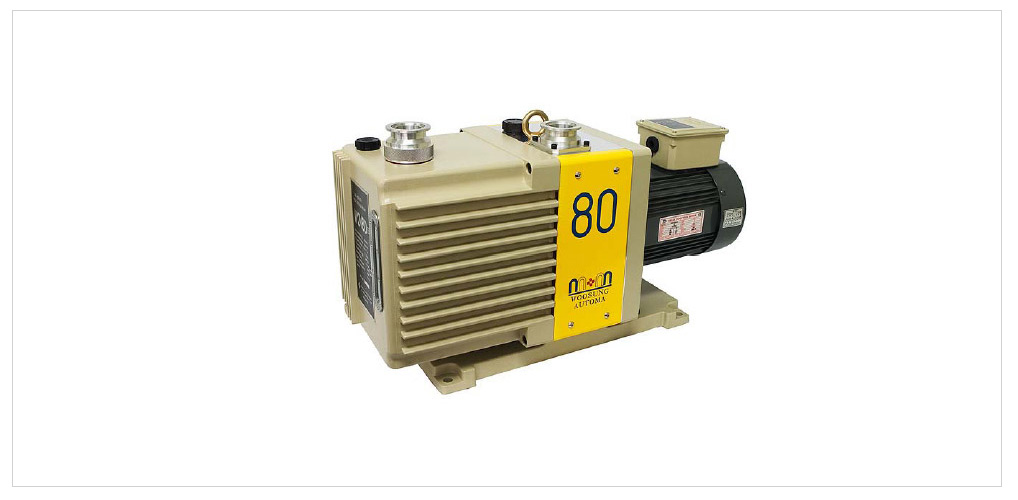

Specfifcation of W2V80
W2V80
| Pumping Speed | 800 ℓ/min | |
|---|---|---|
| Ultimate Pressure | Gas Ballast Closed | 5X10-4 torr(6.7x10-2 Pa) |
| Gas Ballast Open | 5X10-2 torr(6.7 Pa) | |
| Power Input | Standard | 220VAC/380VAC 3Ф 50/60Hz |
| Customer's Request(Voltage, Frequency and phase) | ||
| Full Load Power | 1.5kw(2 HP) | |
| Motor Speed | 1700rpm | |
| Inlet and Outlet | Standard | NW40 |
| OptionⅠ | NW25 or Hose (Ф36 OD) | |
| OptionⅡ | Hose Nipple(Ф12 OD, Ф16 OD, or Ф26 OD) | |
| OptionⅢ | Screw Nipple(3/8" Female) | |
| Oil Capacity | 2700cc (2.7ℓ) | |
| Weight | 67kg | |
| Ambient Operation Temp. Range | 7~40℃ | |
| Overall Dimension(mm) | 226(W)X624(L)X346(H) | |

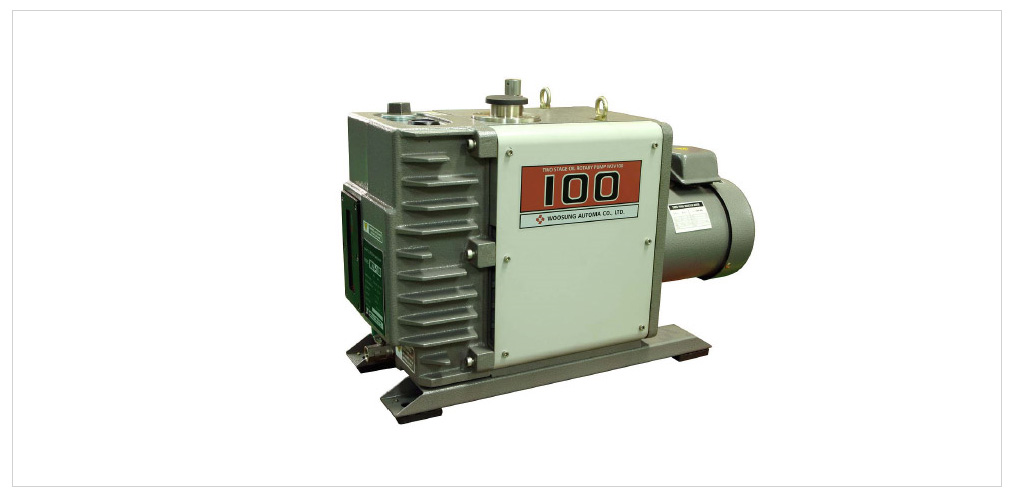

Specfifcation of W2V100
W2V100
| Pumping Speed | 1000 ℓ/min | |
|---|---|---|
| Ultimate Pressure | Gas Ballast Closed | 5X10-4 torr(6.7x10-2 Pa) |
| Gas Ballast Open | 5X10-2 torr(6.7 Pa) | |
| Power Input | Standard | 220VAC/380VAC 3Ф 50/60Hz |
| Customer's Request(Voltage, Frequency and phase) | ||
| Full Load Power | 1.5kw(5 HP) | |
| Motor Speed | 1700rpm | |
| Inlet and Outlet | Standard | NW40 |
| OptionⅠ | NW25 or Hose (Ф36 OD) | |
| OptionⅡ | User Requested Type | |
| Oil Capacity | 4500cc (4.5ℓ) | |
| Weight | 80kg | |
| Overall Dimension(mm) | 264(W)X663.5(L)X442(H) | |
Specfifcation of W2V150
W2V150
| Pumping Speed | 1500 ℓ/min | |
|---|---|---|
| Ultimate Pressure | Gas Ballast Closed | 5X10-4 torr(6.7x10-2 Pa) |
| Gas Ballast Open | 5X10-2 torr(6.7 Pa) | |
| Power Input | Standard | 220VAC/380VAC 3Ф 50/60Hz |
| Customer's Request(Voltage, Frequency and phase) | ||
| Full Load Power | 3.7kw(5 HP) | |
| Motor Speed | 1700rpm | |
| Inlet and Outlet | Standard | NW40 |
| OptionⅠ | NW25 or Hose (Ф36 OD) | |
| OptionⅡ | User Requested Type | |
| Oil Capacity | 6200cc (6.2ℓ) | |
| Weight | 110kg | |
| Overall Dimension(mm) | 256(W)X777.5(L)X420.7(H) | |

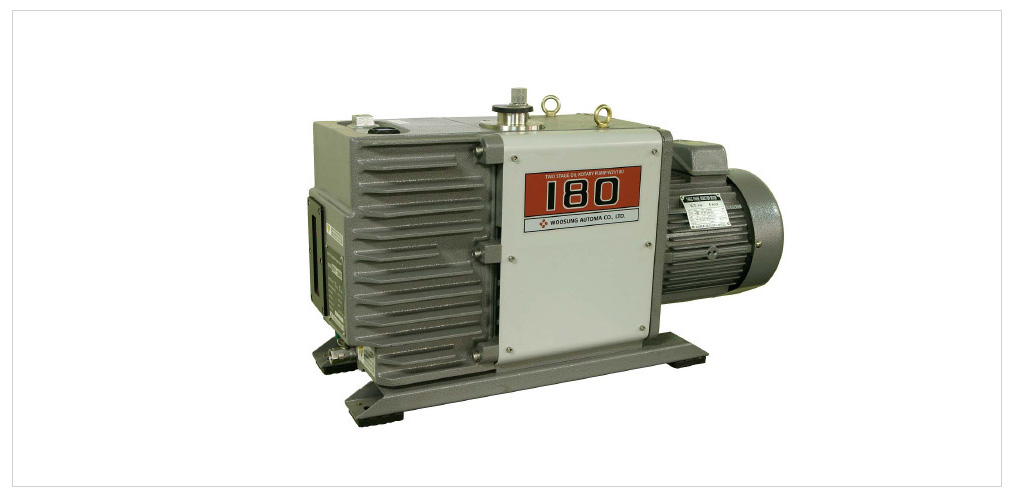

Specfifcation of W2V180
W2V180
| Pumping Speed | 1800 ℓ/min | |
|---|---|---|
| Ultimate Pressure | Gas Ballast Closed | 5X10-4 torr(6.7x10-2 Pa) |
| Gas Ballast Open | 5X10-2 torr(6.7 Pa) | |
| Power Input | Standard | 220VAC/380VAC 3Ф 50/60Hz |
| Customer's Request(Voltage, Frequency and phase) | ||
| Full Load Power | 3.7kw(5 HP) | |
| Motor Speed | 1700rpm | |
| Inlet and Outlet | Standard | NW40 |
| OptionⅠ | NW25 or Hose (Ф36 OD) | |
| OptionⅡ | User Requested Type | |
| Oil Capacity | 6200cc (6.2ℓ) | |
| Weight | 120kg | |
| Overall Dimension(mm) | 256(W)X777.5(L)X420.7(H) | |
특장점
- Extra small and light weight
W2V Series have a compact design. Easy to carry and set up.
- Extreamly quiet
Precise machining eliminates noise and vibration levels well below those of competitors.
- Easy to maintain
Simple structure of W2V Series helps customer to maintain by self easily. Two kind of repair kits are supported for maintain.
- Best Reliability
For more than 20 Years, W2V Series have been used in TOP display companies like SAMSUNG, LG, HITACHI, and so on. 'Stability and Reliability' is the key frature of W2V Series.
All pumps of W2V Series have CE Certification.
